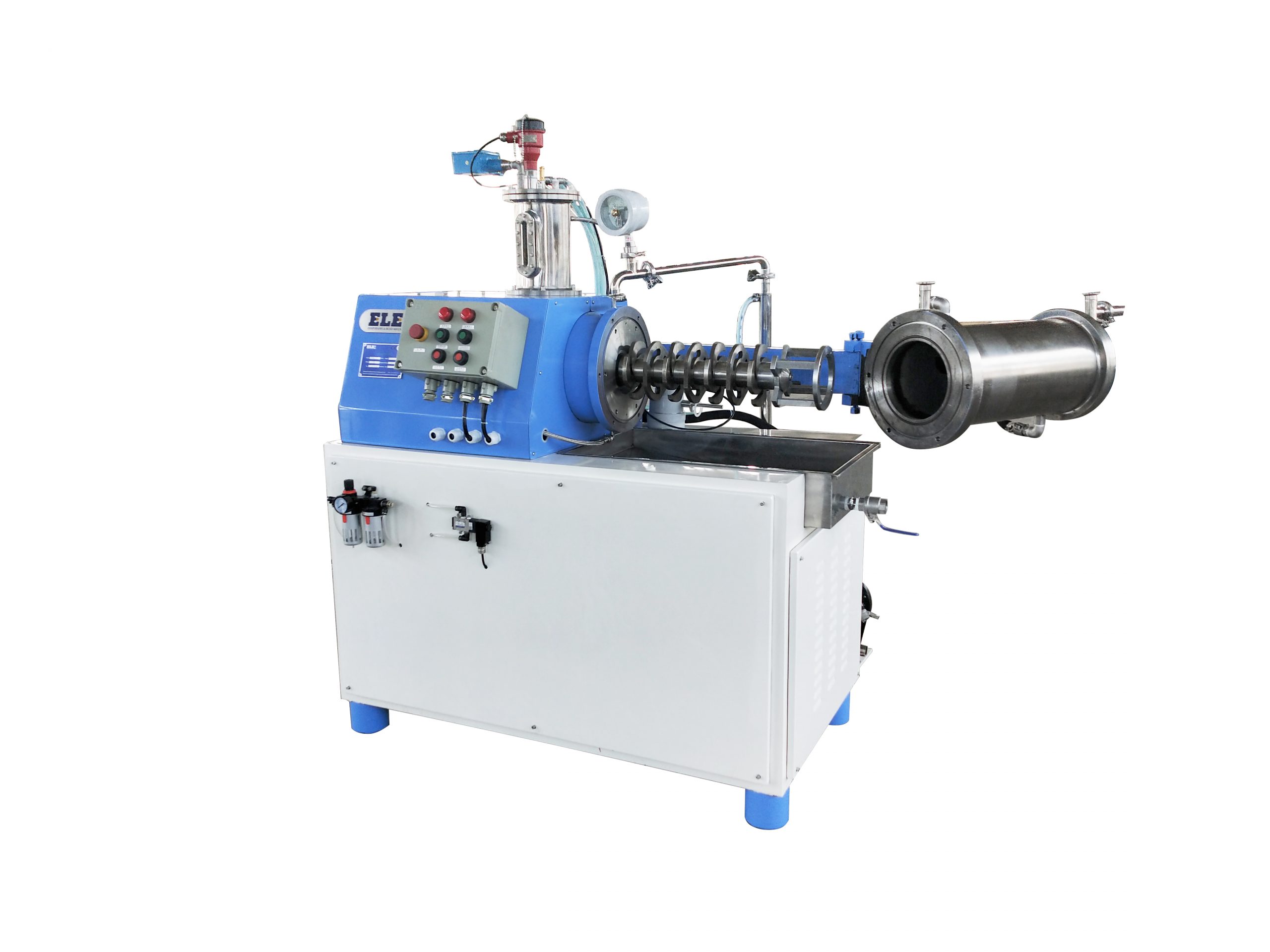

Máy nghiền ngang 20L

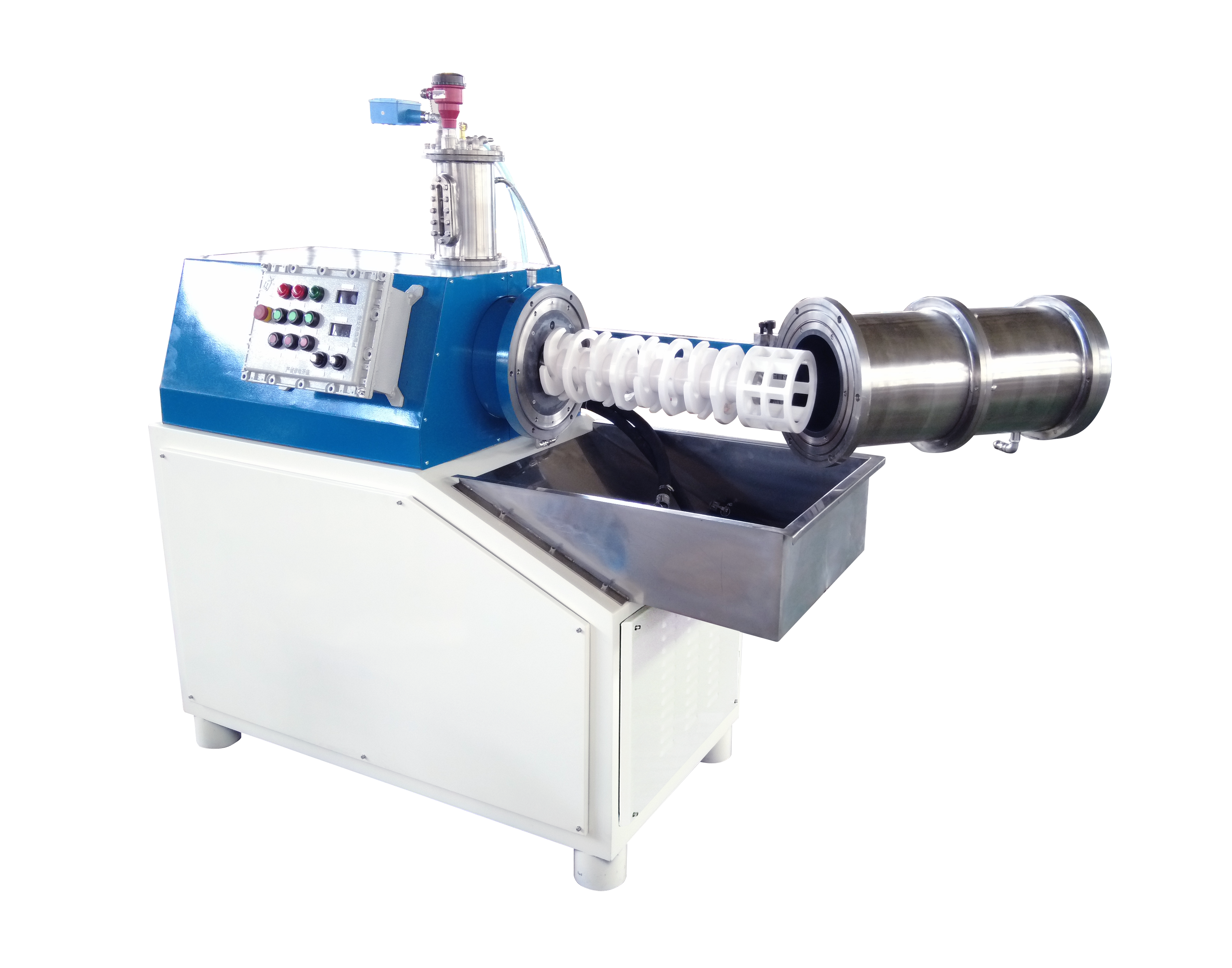

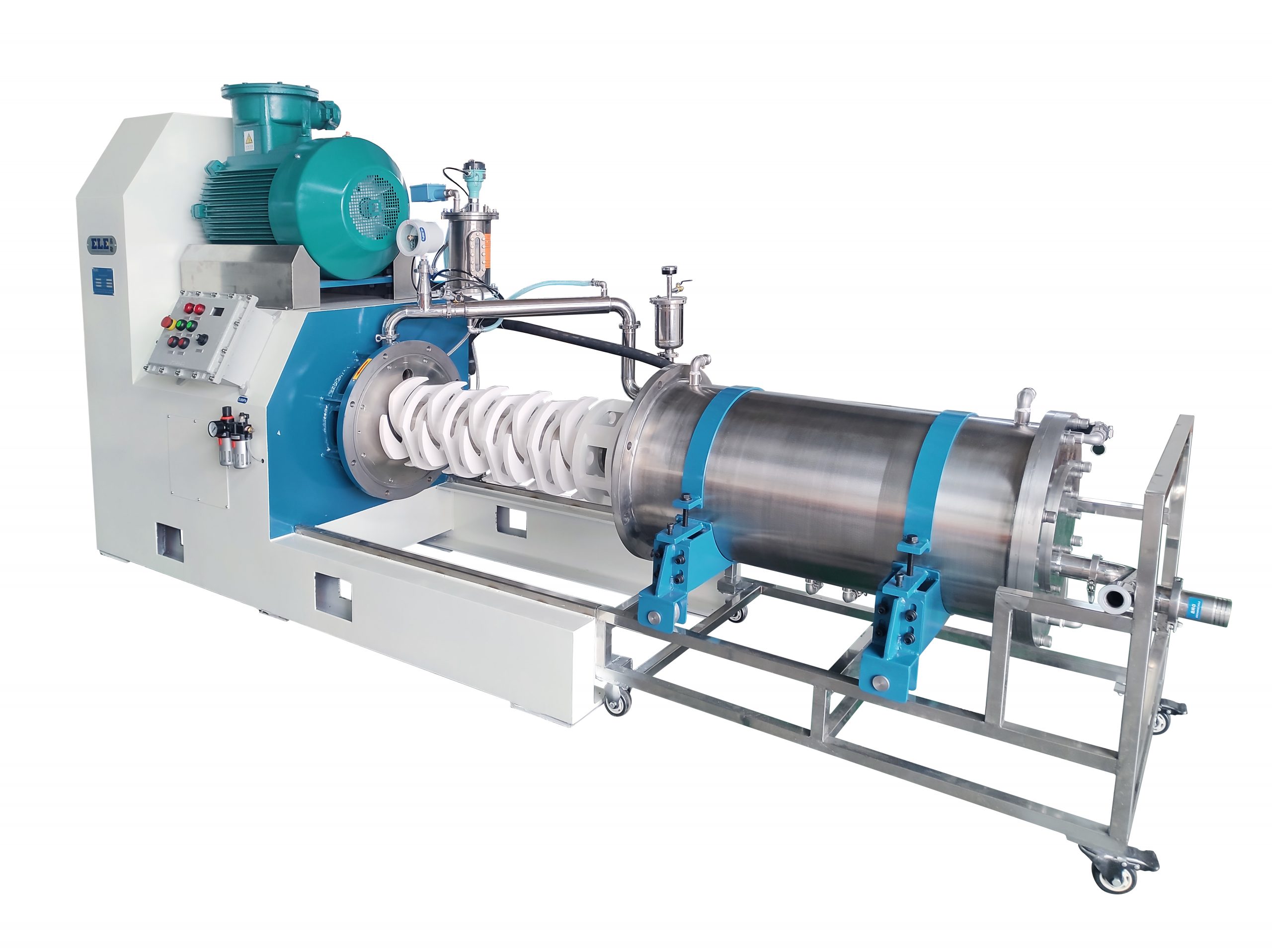

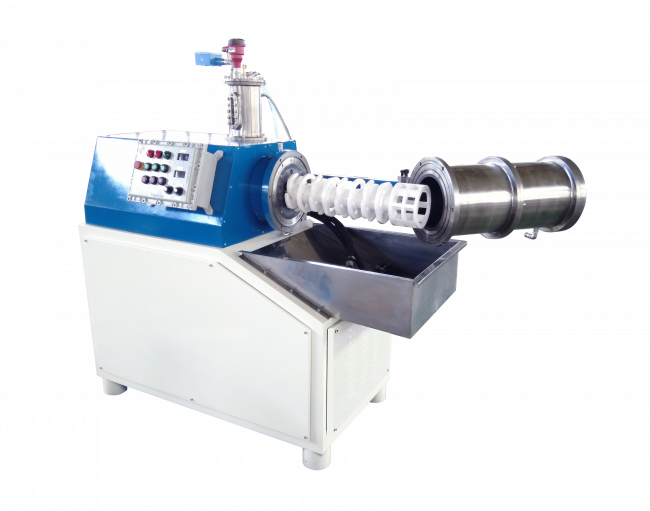

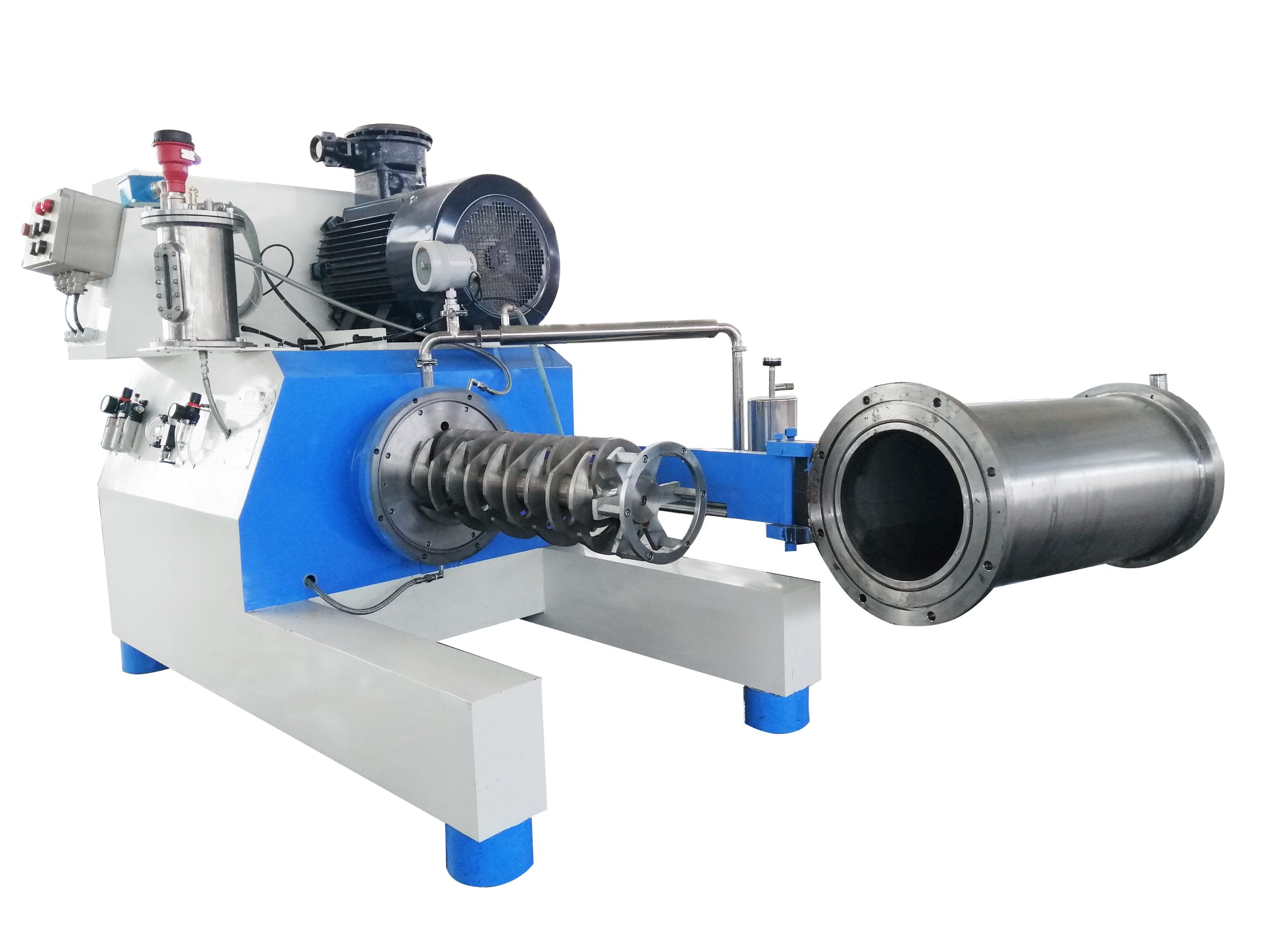

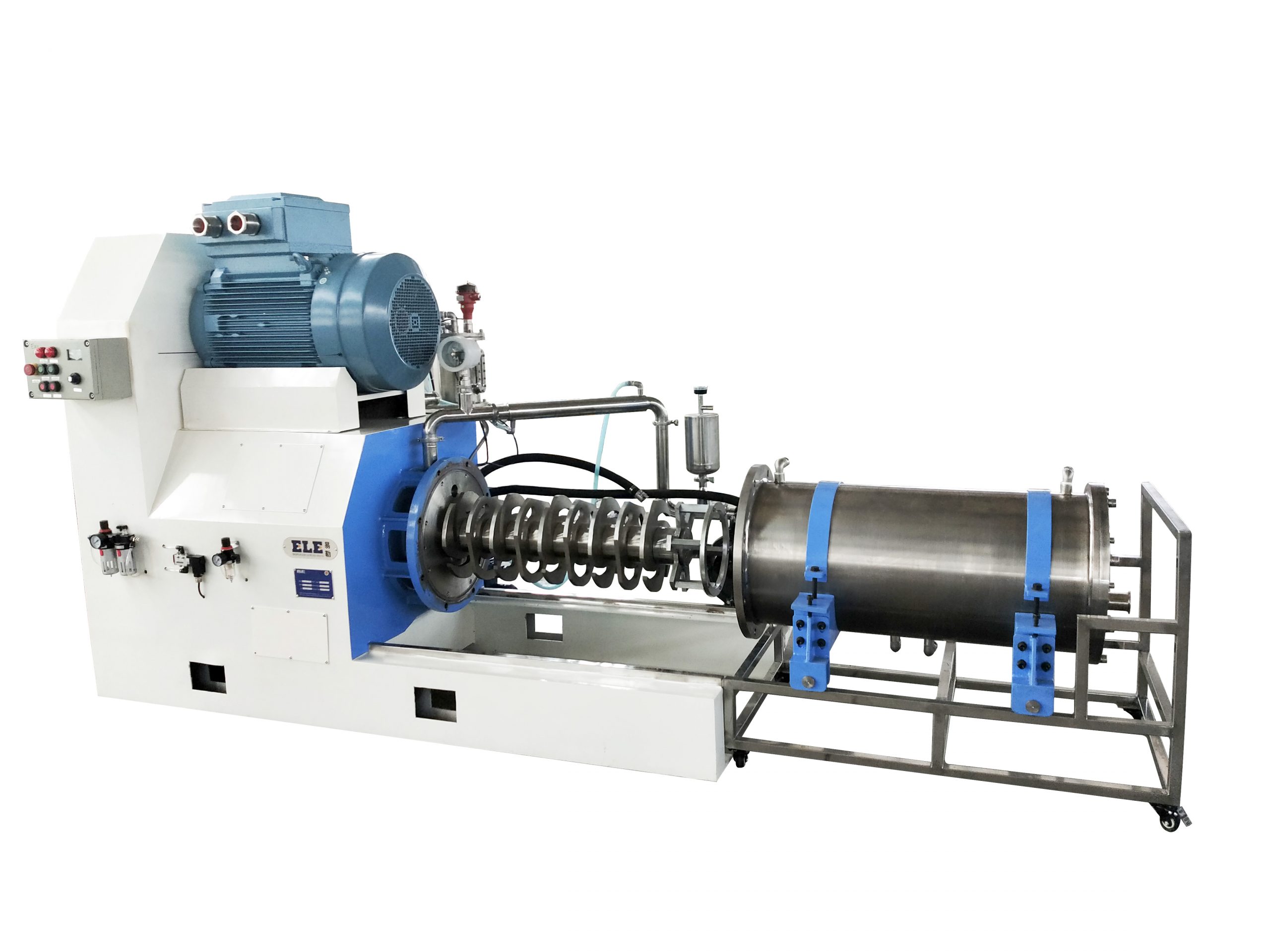

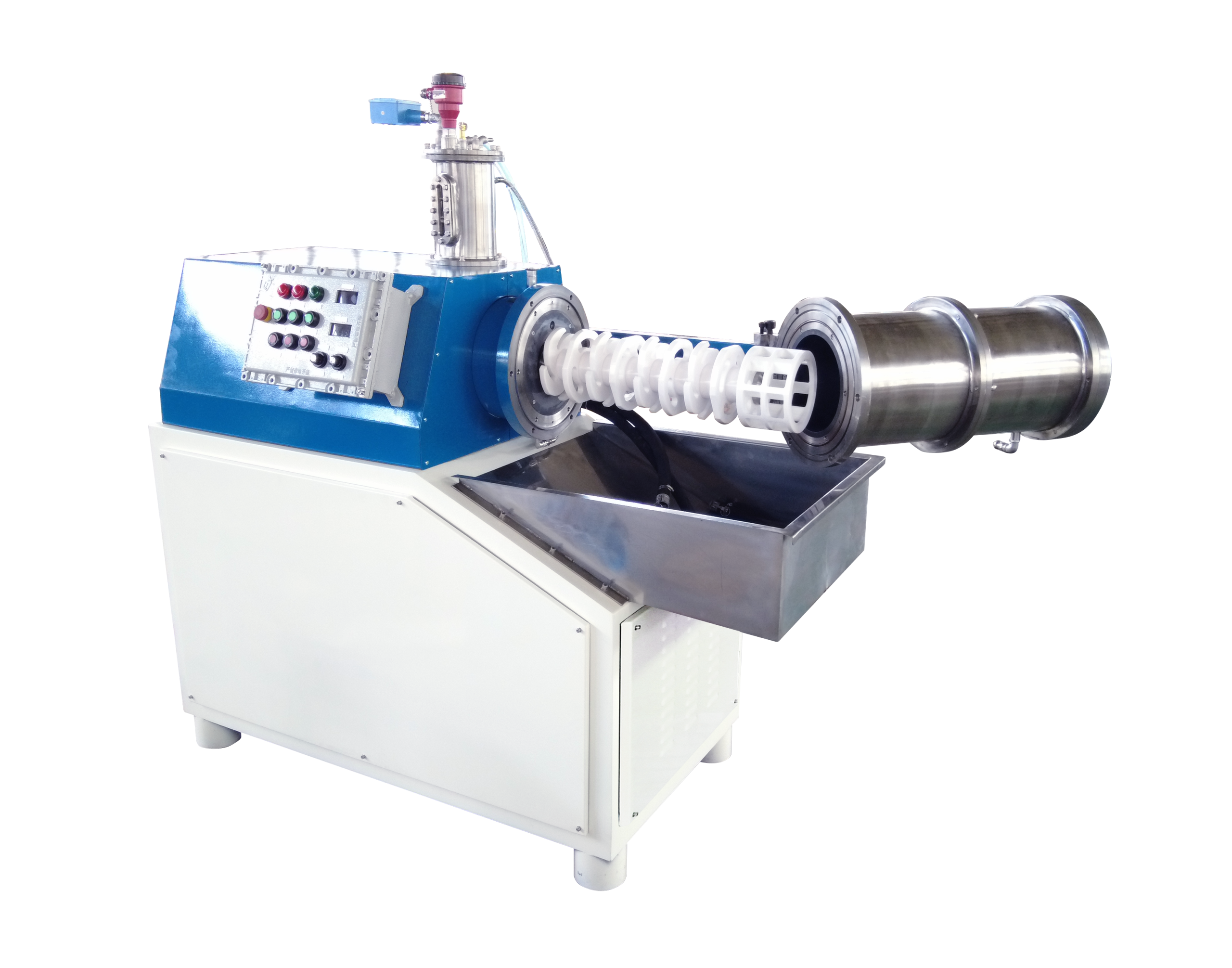

EBW Series Disc Type Horizontal Bead Mill

YourTech horizontal pearl mill cooperates with Switzerland technology, with advanced structure, high efficiency, nanometer and micron final fineness. It is widely used in the industry production of paint, color paste, printing ink, papermaking, adhesive, drugs, chemical industry etc.

It adopts specially wear-resisting materials, prolonging service life, and well adopted to different viscosity of materials.

Specification

• Easy to start, with low energy consumption rate and high grinding efficiency.
• Explosion-proof control components can be optional to meet reliable EX requirements.
• Advanced electric control system and fault alarm system.
• It can be equipped with different kinds of pump to match different materials (such as pneumatic diaphragm or gear pump).
• Unique double cartridge mechanical seal, to ensure long operation of shaft seal, maximum 8 -10 kg pressure

Advantages

Special Feeding System:

Feeding pump with buffer tank to make sure feeding smoothly, buffer tank with pressure meter, If the grinding chamber is blocked, we can release the pressure from the buffer tank

Discharging System: New technology of Discharge method

Large Area centrifugal separator, the centrifugal wheel push away the grinding beads from the discharge sieve, make sure discharge smoothly, no blocking of beads

Special Mechanical Seal & Bearing Housing

• Special double cartridge mechanical seal, ensure long operation of shaft seal, maximum 8 -10 kg pressure;
• Special Bearing Housing, match mechanical seal well, one whole part, ensure the accuracy to below 0.03mm. Make sure stable working & extend the long life.

Cooling system

• Feeding pipe with jacket for cooling
• Cooling Tank for Mechanical Seal

Application

Coating: Water-based coating, Solvent-based coating, Decorative Coating, Latex paint;

Paint: Car Paint, Finish paint, Wood paint, Industrial paint;

Ink: Gravure Printing ink, Flexographic ink, Offset printing ink, Silk screen ink, UV light solid ink, Digital inkjet ink etc;

Pigment: Dye, Color painted pigment, Pen liquid，Watercolor;

Electronic Materials: Battery diaphragm alumina, Lithium iron phosphate, Ceramic slurry, Flame retardant;

Food Industry: Chocolate Syrup, Paste etc;

Pesticide: Pesticide suspension, EC, EW, ME;

Daily Chemical Industry: Cosmetics, Liquid soap, Shower gel, Liquid detergent etc;

Biological Medicine: Algae cell fragmentation, Micro-biological functional materials;

Nano Materials: metal oxide, Magnetic Materials, Paper industry, Optoelectronic industry.

Maintenance & Services

1.Before order, customer can take materials to ourvlab and make test grindings, spot-testing parameters like particle size distribution, obtain reliable data for model selection;

2.With three years of spare parts inventory to ensure normal use and make you to be in trouble free;

3.Within 12-months warranty period, we promise to change damaged parts free of charge by air or by sea;

4.Meanwhile, our skillful grinding experts can offer you free professional technical consulting and service.
