Proceq Portable Skid Resistance Tester

Invaluable tool for testing the slip and skid potential of pedestrian surfaces and roadways

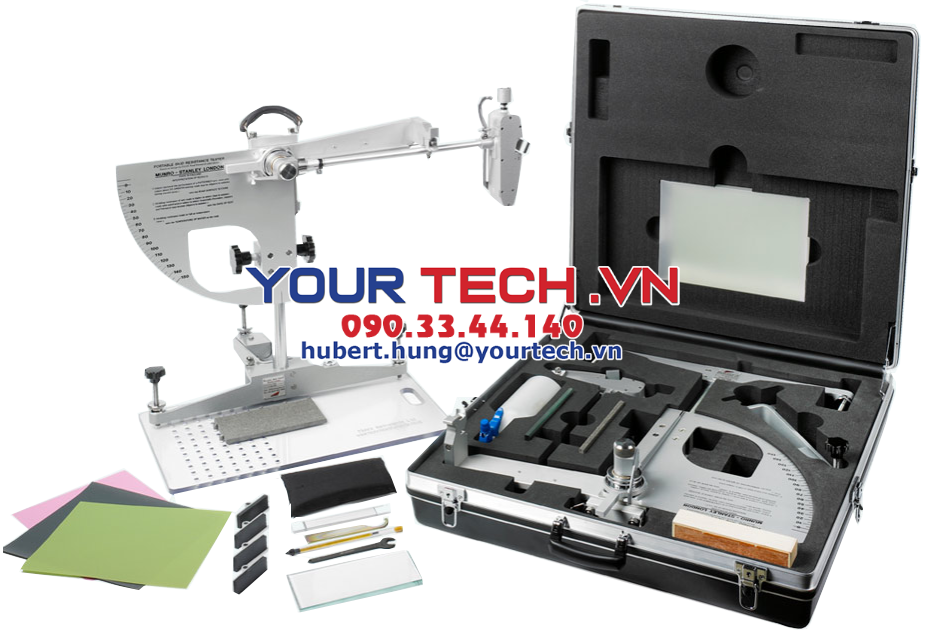

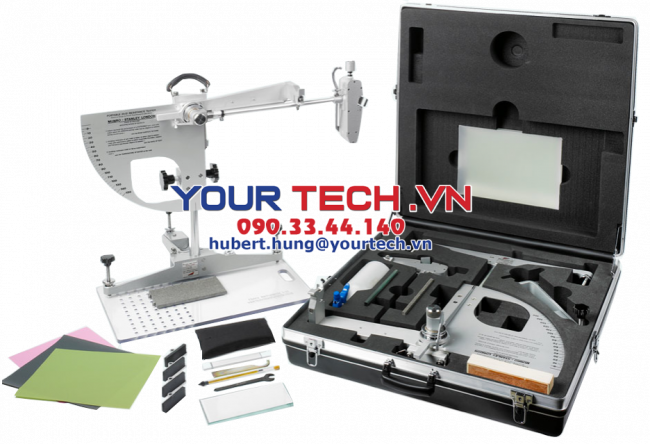

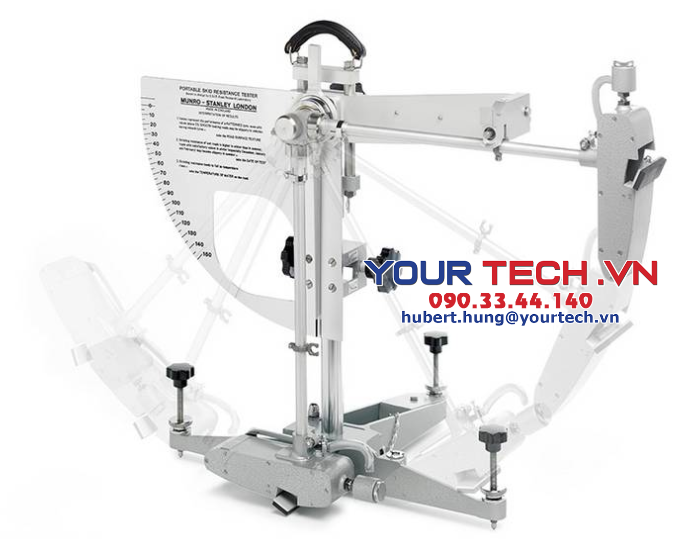

The Proceq SRT 5800 Portable Skid Resistance Tester determines the slip resistance and friction (pendulum test value, PTV) of road markings and all kinds of flooring materials.

Proceq also offers the Proceq SRT 5800 Portable Skid Resistance Tester Pro, an intelligent Pendulum, representing the very latest in slip resistance technology and builds on the trusted mechanical design of the Proceq SRT 5800 Basic.

Overview

• Easy to operate
• Used worldwide
• Reliable measuring results

Applications

• For road construction companies, road authorities, road laboratories, manufacturers of road marking materials, contractors and expert witness

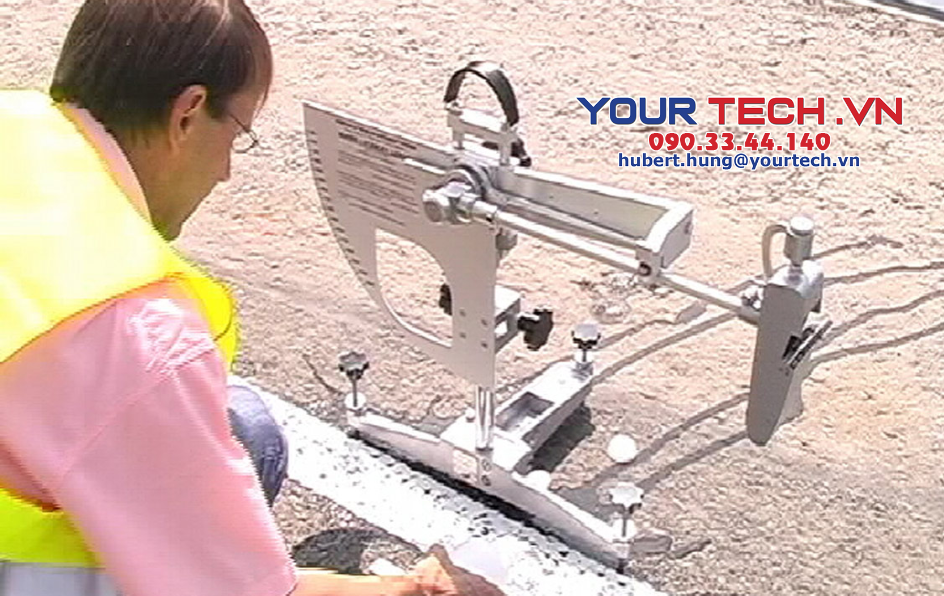

• For the determination of the pendulum test value for laboratory and use in the field

Intelligent Pendulum – the world’s first digitized slip resistance tester

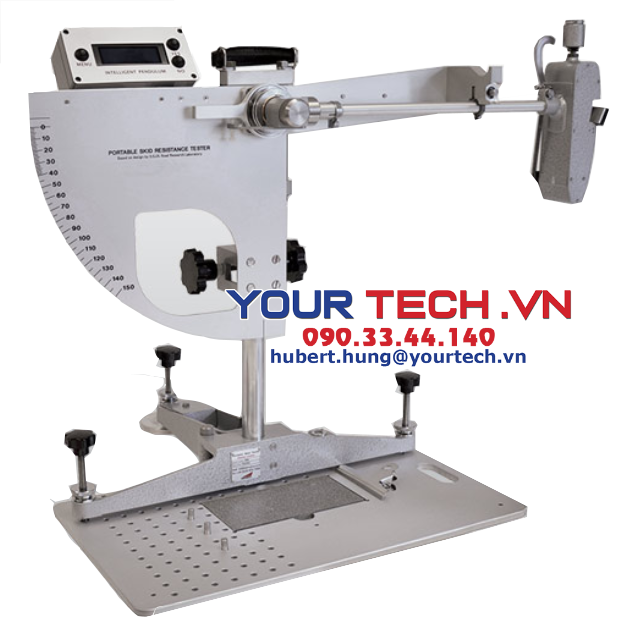

The intelligent Portable Skid Resistance Tester Pro builds on the trusted mechanical design of the Portable Skid Resistance Tester Basic by incorporating an OLED digital display as well as software compatibility to simplify and accelerate the process of data capture.

Key Features

• The Pendulum Test Value (PTV) appears automatically on the OLED digital display, eliminating the possibility of parallax error.
• The digital display provides helpful prompts to simplify and accelerate the test procedure.
• The instrument conforms with all relevant international standards.
• BSI Certification available.

Software

• Generate detailed test reports instantly.
• Quickly download reports as pdf or CSV files.
• Intuitive, easy-to-use design.
• All historical data is stored for future recall.
• Software and reports can be personalised to include your organization’s name, colours and logo.

Features

Standardization

• BS EN 13036-4:2011
• BS 7976-1:2002+A1:2013
• BS EN 1097-8:2009
• BS 812-114:1989
• ASTM E303
• AS/NZS 4586-2013
• AS/NZS 4663-2013

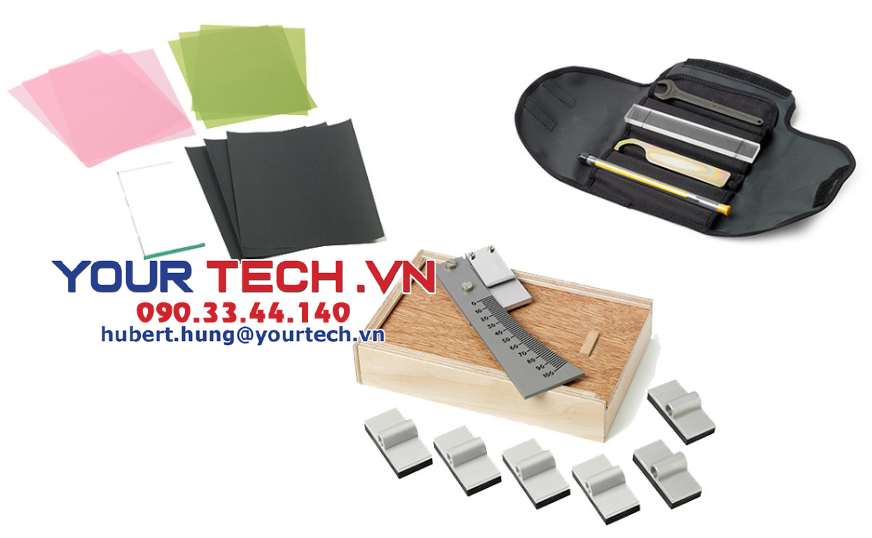

Accessories

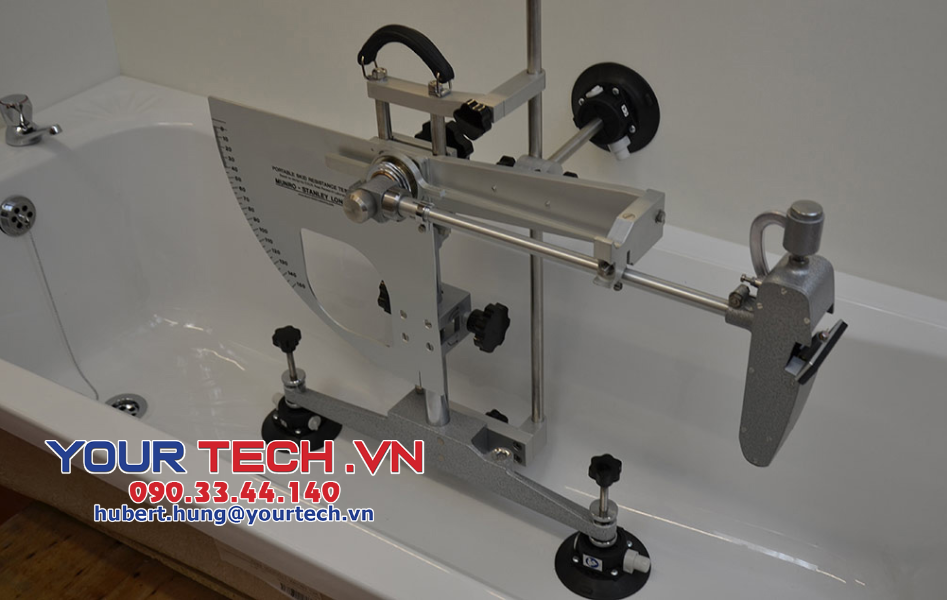

• Bath & Shower Attachment (41090900)
• Large mounted rubber slider TRL (41090901)
• Large mounted rubber slider 4S rubber (41090902)
• Large mountend CEN Rubber Slider (41090903)
• Small Mounted TRL(55) Rubber Sliders (41090904)
• Small Mounted 4S(96)
• Rubber Sliders (41090905)
• Small mounted CEN rubber sliders (41090906)
• Pink Lapping Film (41090907)
• Green Lapping Film (41090908)
• Float glass for conditioning and verification (41090909)
• Pavigrés tile for conditioning and verification for TRL(55) Rubber Sliders (41090910)
• Pavigrés tile for conditioning and verification for 4S(96) Rubber Sliders (41090911)
• Aluminium Sample Holder (41090912)
• Base Plate for Polished Stone Value Testing (41090913)
• P400 Conditioning paper (41090914) Detachable Scale with 6 small TRL(55) Rubber Sliders (41090915)
• Detachable Scale with 6 small 4S(96) Rubber Sliders (41090916)
• Detachable Scale with 6 small CEN Rubber Sliders (41090917)
• Spreader Feet (Set of 3) to SRT 5800 (41090918)
• Tools Kit (41090919)
