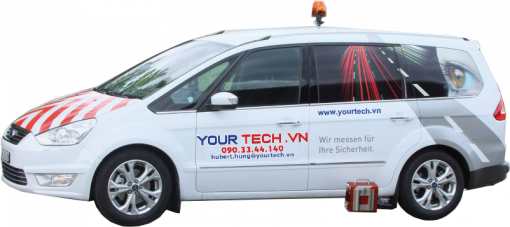

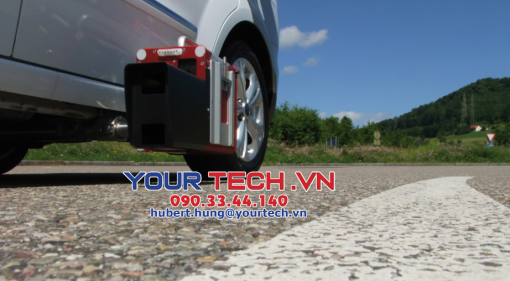

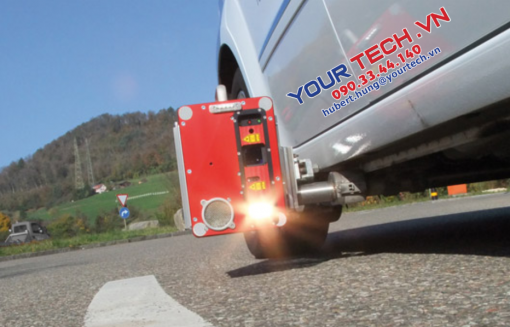

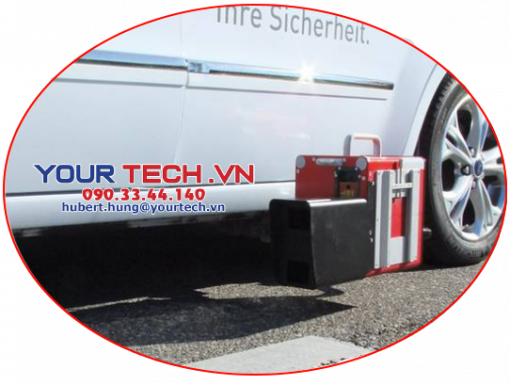

The Proceq ZDR 6020 vehicle mounted retroreflectometer gives you the best value for safe and efficient continuous measurements of night visibility (RL) for all types of road and airport markings.

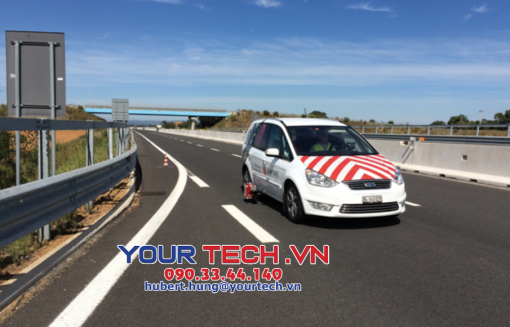

The Proceq ZDR 6020 offers handheld precision at up to 150 km/h (93mph) without obstructing traffic and can recognize double and even triple lines while automatically storing the measurements separately.
For convenient one-person operation, the driver can navigate the vehicle and operate the system at the same time using the display with touchpanel. When operated by 2 people, the laptop is used for safe and convenient control of the measuring system by the front passenger using the RetroGrabber software. Our product comes with a microphone for voice recording comments on special features e.g. road works. These recordings are stored directly with the corresponding RL-value.

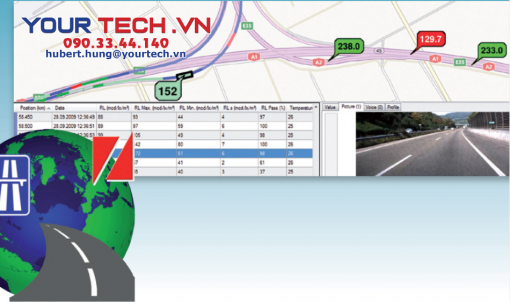

MappingTools software for Proceq retroreflectometers allows simple administration and analysis of road and airport markings, traffic signs and/or safety garments measurements. Results containing GPS coordinates can be displayed on a map in different colours using adjustable profiles and can also be exported to Google Earth™. Reports can be generated in PDF or XLS file formats.
Recorded information on the measurements (like pictures, ambient condition, position indication etc.) are displayed.
The map can be saved as an image for use in inhouse reports.
Multi-language menu-guidance, further languages can be included on request. Supported languages include English, Czech, French, Dutch, German, Italian, Polish, Portuguese, Romanian, Spanish, Swedish and Thai.
The MappingTools software is able to store an infinite number of measurements.
6020.EU.1m: Proceq ZDR 6020 Dynamic Retroreflectometer RL mounted at customer’s vehicle at Proceq in CH-4450 Sissach, Switzerland
6020.OV.1m: Proceq ZDR 6020 Dynamic Retroreflectometer RL mounted at customer’s vehicle at the customer’s premises on site
1. Your Benefits
Integrated camera for road surveillance with 10m (32.81 ft) picture sequence
3. Measuring Resolution
Data recording with 300 measurements per second

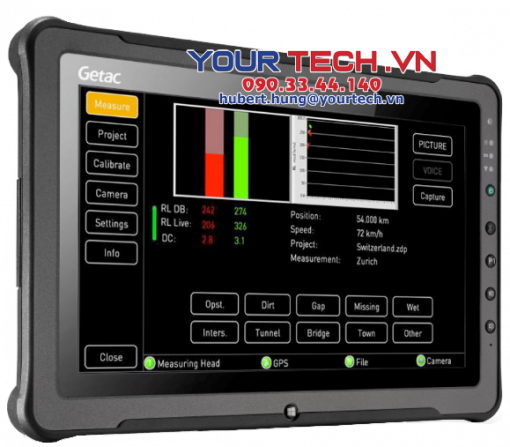

11.6 in. touchscreen tablet with installed ZDR 6020 RetroGrabber software and microphone
Handheld precision at up to 150 km/h (93 mph)
Includes mapping and data analysis software MappingTools
Measuring Head: 10.5 kg (23.1 lbs)
0°C to 55°C (32°F to 131°F)
