Proceq (Zehntner) ZOL 1150 Online-Glossmeter

Sku:

Product details
Technical specifications

Tailored Industrial Gloss Measuring System

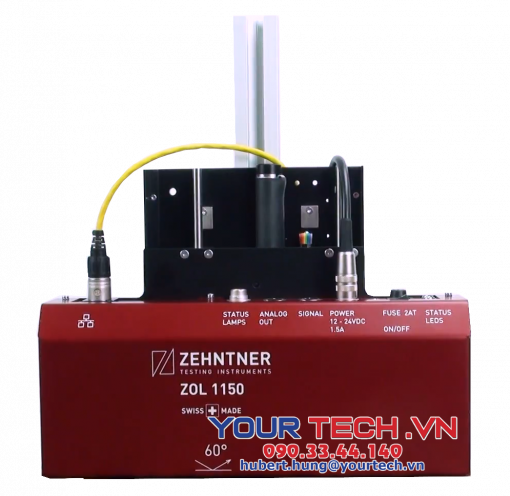

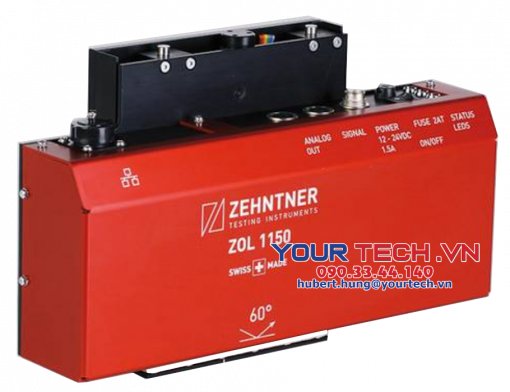

The Proceq (Zehntner) ZOL 1150 Online-Glossmeter is a tailored gloss-measuring system for industrial areas for contactless online measurement of all gloss ranges from matt to high gloss up to 2’000GU.

Overview

Up to 1‘000 readings per second with multi-angle measuring heads and automatic measuring distance correction
Measurements on the lower and/or upper side of the continuous material
Automatic in-situ calibration
Ethernet interface
Analog output of the measuring value, outputs for out of range measurements and changing reels (i.e. to signal lamps)
Signal input for calibration and moving measuring head

Applications

Coatings, plastics and related materials. High gloss (20°), Medium gloss (60°), Low gloss (85°)
Coatings, plastics and related materials. High gloss (20°), Medium gloss (60°)

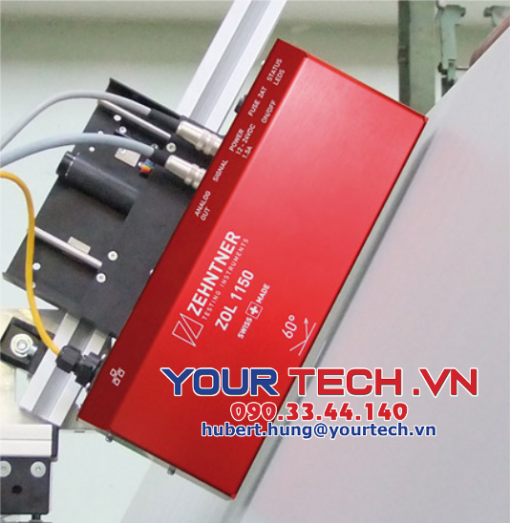

In-line production use

Features

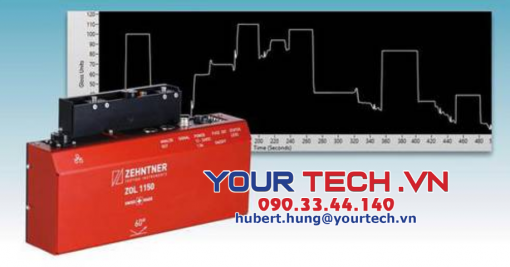

PC Software	Data logging software
Display	Connects to computer
Memory	Connects to computer
Measurement Modes	Sensor adaption V(λ)
Measuring Geometries	dual angle: 20° and 60° triple angle: 20°, 60° and 85°
Measuring Range	0 – 2‘000 GU
Measuring Accuracy	0 – 1999 GU: ≈2 GU
Reporting software	Data logging software
Weight	20°/60°: 4 kg (8.8 lbs)
Battery	Requires power supply
